DTA series is designed for practical applications with 3 most-frequently adopted signal outputs in the industry and is built-in with various handy functions and transmission structure, ensuring fast and stable transmission of data.

Applications

Blower coil pipe in central air-conditioning system, heating system.

Specifications

• PID / On-Off/ manual input control modes
• Auto-tuning PID parameters
• Various thermocouple (B, E, J, K, L, N, R, S, T, U, TXK) and platinum RTD (PT100, JPT100) can be set by parameters
• Built-in 2 groups of alarm switches with 13 alarm modes each
• Celsius or Fahrenheit temperature display
• 2 key lock functions: (1. lock all keys; 2. lock only function key, up/down keys are still workable)
• Panel size: 4848, 4896, 9648, 7272, 9696
• Optional RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400)
• Optional CT (wire breaking detection) function, an alarm output
• Sampling time of sensor: 0.5 second/time
• Certifications: IP5X protection, CE, UL

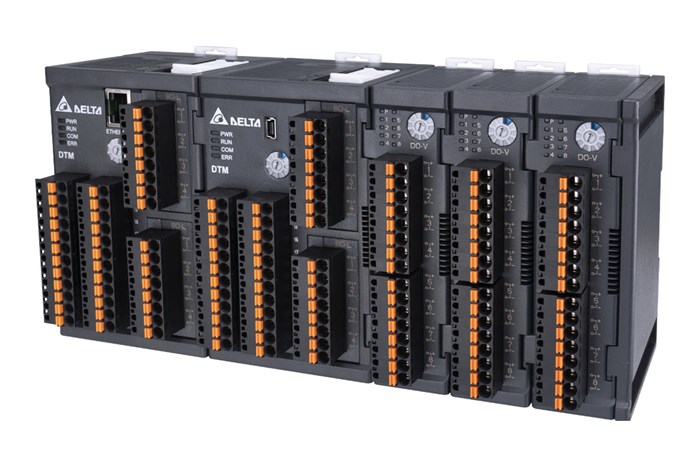

To meet the increasing complexity of temperature control applications, Delta introduces the Multi-channel Modular Temperature Controller DTM Series. The DTM Series consists of a host, measurement modules, I/O extension modules, and extension cassettes. A fully extended DTM group consists of a host plus 7 measurement modules and 8 I/O extension modules for up to 64 points of temperature control. Several DTM groups can even be connected via RS-485 or Ethernet for temperature control of up to 1,000 points or more. Data collection by the host and complete isolation between channels help to improve communication speed and stability. It also allows user-defined communication addresses. From hardware to software, the DTM's intuitive design enables beginners to setup and operate it easily. It is an ideal solution for advanced and complex temperature control applications.

Applications

Food packaging, rubber and plastics, electronics.

Specifications

• Modular design for easy wiring
• Various extension modules for a wide range of applications
• Data collection by hosts for highly efficient data exchange
• Supports RS-485 and Ethernet communication for multi-point temperature control: up to 64 points per host group, >1,000 points with several host groups
• User-defined communication addresses
• Complete isolation between channels

The modulized DTC series saves wiring and the parallel modules are able to monitor many temperature points. The flexible output methods enable the user to plan the output modes according to the actual needs. The built-in password protection prevents improper operation or damages caused by the operation staff.

Applications

Blower coil pipe in central air-conditioning system, heating system.

Specifications

• PID / On-Off / manual input / programmable control modes
• 2 groups of outputs for auto-tuning 2 groups of PID parameters
• Able to connect to various thermocouples (B, E, J, K, L, N, R, S, T, U, TXK), platinum RTD (PT100, JPT100), analog current (0 ~ 20mA, 4 ~ 20mA) and linear voltage (0 ~ 5V, 0 ~ 10V)
• Maximum 2 groups of alarm switches are available, with 12 alarm modes each
• LED status display
• Celsius or Fahrenheit temperature display
• Built-in RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400)
• Sampling time of thermocouple/platinum RTD: 0.4 second/time; sampling time of analog input: 0.15 second/time
• Programmable logic controller is able to set up 64 sets of temperature and control time.
• 3 levels of password protection; wire saving; synchronous communication protocol setting; ID auto setting.

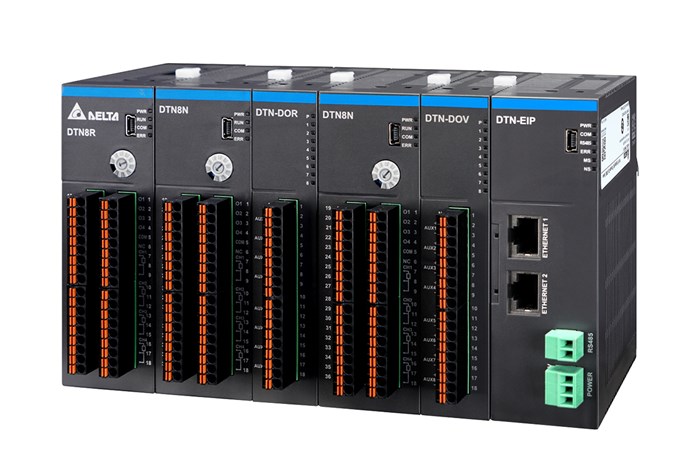

Temperature control is crucial for stabilizing efficiency and product quality. As customer requirements advance due to the rapid development of industry, Delta has applied its extensive experience and solid technological capabilities and introduced the new Multi-Loop Modular TemperatureController DTN Series with a thin-type design. The DTN Series not onlyoffers multi-point temperature control, but also saves horizontal mountingspace to optimize space utilization, overcome cabinet limitations, andreduce production costs. With the employment of the Ethernet module, it builds a network connecting multiple DTN groups to achieve real-time multiloopparameter management to satisfy the needs of advanced and complexapplications.

Applications

Ceramic Heating Plate of Vacuum Forming Machine, Solar Energy Laminating Machine, Woodworking Edge Banding Machine

Specifications

• Thin-type design saves horizontal mounting space
• Various Extension Modules for Flexible Applications
• Fast Module Connection via RS-485 Communication
• Ethernet Communication for Fast and Stable Transition & Simple Wiring
• Complete Isolation between Channels

DTE series is a multi-channel modular temperature controller, supporting maximum 8 groups of thermocouple/platinum resistance input. The DIN rail installation saves wires, and the controller on each channel can work independently at the same time. DTE offers several output modules (relay, voltage pulse, current output and linear voltage output). The built-in 2-wire RS-485 communication is able to reach baud rate of 115,200bps. In programmable control, DTE is able to set up 64 sets of different temperature and control time. In addition, maximum 7 DTC2000 controllers are extendable to DTE, and DTE supports the synchronous communication protocol and auto ID setup function which DTC series also supports.

Applications

Airconditioning system, plastic machinery.

Specifications

• PID, ON/OFF, programmable PID or manual control are available.
• PID auto-tuning
• Programmable control for 8 patterns and 8 steps in each pattern.
• 12 modes ready for alarm output
• °C or °F for the temperature unit
• Built-in RS-485 communication interface which supports Modbus ASCII/RTU and baud rate of up to 115,200bps.
• Extendable to maximum 7 DTC2000 digital controllers
• Supports synchronous communication protocol and auto ID setup function.
• Supports various selections of input/output modules, e.g. relay output, voltage pulse output, current output, analog voltage output, parameter display and setup.
• Supports CT functions, over-current and off-line alarm

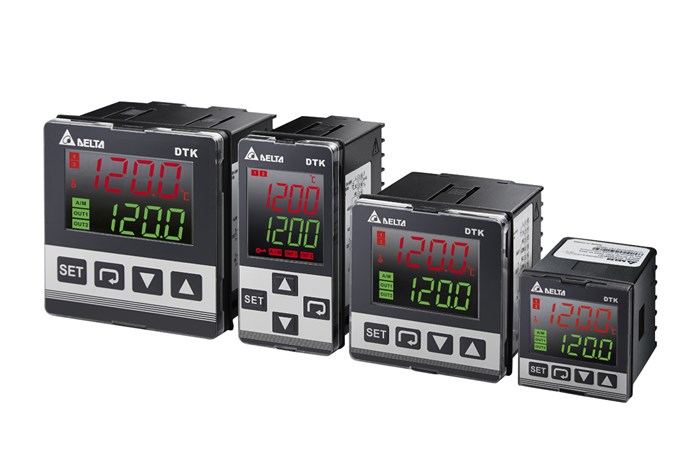

DTK Series is a new temperature controller with a high cost-performance ratio. It greatly decreases development costs and time, and improves the functions of temperature control systems. With a length of only 60 mm and high resolution LCD display, it is easy for operators to monitor the temperatures of any environment or occasion.

Applications

Food packaging, rubber and plastics, electronics industries, HVAC.

Specifications

• High resolution LCD display
• Length shortened to 60 mm
• High speed sampling time 100 ms
• CE certified

Designed for the electron valve market, user-friendly, easy to set up and use, competitive, built-in with Modbus, simple data acquisition.

Applications

Kilns, controllers for electron valve

Specifications

• Single key for switching between auto and manual mode.
• Additional left key for adjusting the number, making parameter settings faster and handier.
• Displaying output percentage for the user to acquire the openness of the valve immediately.
• Control methods are designed entirely for the features of electronic valve.
• DTV have two groups of alarm outputs with 17 modes, for more choices of applications.
• The RS-485 interface allows collecting data from many devices through network on-line monitoring.
